We have a story about benchmarking libraries before making them a dependency for our project. One day, after a few weeks creating our C++ SDK —that is the SDK that’s going to be engine agnostic— we stumbled upon a problem: the dependency tree was huge, which made the build time uncomfortably long.

At that point we used cpprestsdk as the backend for our HTTP and WebSocket worker. Executing the export command gave us a folder with 1GB in size, which is obviously too big for an SDK. We wanted it to be lean, so we search for another library out there to replace cpprestsdk. In order to make sure that the replacement is comparable, we did some benchmarks.

Method

We measured the total round trip time, from send to receive, including the wait time for the server to respond. Local server was used, and a TCP socket benchmark was also done to find the baseline of the measurement therefore we’re sure that the server wait time is negligible.

Most of the test was done by preparing the data once and sending multiple requests to the server.

Setup

We used google-benchmark to run the benchmark, it’s a nice little library that’s proved to be useful in this case. We tested both the secure and the insecure connection.

The tests were done locally using the following software:

Steps to reproduce

There’s no point in doing all this if you cannot reproduce the result. To clear up your doubts, I’m going to share the guide to set up the benchmark environment.

Preparation

  1. Download and install nginx 1.16. If you’re on Windows, you simply need to unzip the package. If you’re on Linux, you need to build it first or simply download it from your package manager.
  2. Clone the simple-websocket-server
  3. Download mkcert
  4. (Optional) Rename mkcert-vx.x.x-<platform>-<arch> to mkcert
  5. (Optional) You can place it to a directory and add it into PATH environment variable so it's easier to call mkcert
  6. Run mkcert -install, it will create self-signed CA and install it on your machine

Local HTTP Server

  1. Go to the directory where you’ve unzipped the nginx, then create an ssl folder and run mkcert localhost inside the directory. It will create a certificate and key required for the local HTTPS server.
  2. Modify the <nginx_folder>/conf/nginx.conf file to match the port number.
  3. Run nginx and test it by accessing http://localhost:<your_http_port_num> and https://localhost:<your_https_port_num>
  4. Refer here to control nginx on runtime

Local WS Server

  1. Go to the directory where you’ve cloned the websocket-server, then run mkcert localhost inside.
  2. Run ws server using the following command‌‌:
    python .\SimpleExampleServer.py --example echo --port <your_ws_port>
  3. Run wss server using this command‌‌:
    python .\SimpleExampleServer.py --example echo --port <your_wss_port> --ssl 1 --key localhost-key.pem --cert localhost.pem
  4. Test the server by modifying SimpleHTTPSServer.py, then run it with:
    python‌‌.\SimpleHTTPSServer.py‌‌
    After that, in your browser, open https://localhost:62005/websocket.html.
  5. Try to connect to your local server.
  6. Refer here for more information.

Here’s some suggested configuration for nginx.conf file. You can follow it or come up with your own.

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  text/plain;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       62001;
        server_name  localhost;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
    }

    # HTTPS server

    server {
        listen       62003 ssl;
        server_name  localhost;

        ssl_certificate      ../ssl/localhost.pem;
        ssl_certificate_key  ../ssl/localhost-key.pem;

        ssl_session_cache    shared:SSL:1m;
        ssl_session_timeout  5m;

        ssl_ciphers  HIGH:!aNULL:!MD5;
        ssl_prefer_server_ciphers  on;

        location / {
            root   html;
            index  index.html index.htm;
        }
    }
}

And here’s the suggested SimpleHTTPSServer.py file using port 62005

import ssl

try:
    from BaseHTTPServer import HTTPServer
except:
    from http.server import HTTPServer

try:
    from SimpleHTTPServer import SimpleHTTPRequestHandler
except:
    from http.server import SimpleHTTPRequestHandler

if __name__ == "__main__":
    httpd = HTTPServer(('', 62005), SimpleHTTPRequestHandler)
    httpd.socket = ssl.wrap_socket(httpd.socket, server_side=True, certfile='./localhost.pem',
                                 keyfile='./localhost-key.pem', ssl_version=ssl.PROTOCOL_TLSv1)
    httpd.serve_forever()

That’s it for the environment, now let’s see how the results come up.

Result

Here’s the edited output of google-benchmark for completeness.

Run on (16 X 3194 MHz CPU s)
CPU Caches:
  L1 Data 32K (x8)
  L1 Instruction 65K (x8)
  L2 Unified 524K (x8)
  L3 Unified 8388K (x2)
-------------------------------------------------------------------------------------------------------------------
Benchmark HTTP                                                                    Time             CPU   Iterations
-------------------------------------------------------------------------------------------------------------------
stream_socket_get_and_read_response/repeats:20_mean                             432 us          181 us           20
stream_socket_get_and_read_response/repeats:20_median                           430 us          180 us           20
stream_socket_get_and_read_response/repeats:20_stddev                          4.89 us         25.7 us           20
http_cpprest_get_and_read_response/repeats:10_mean                             3240 us          227 us           10
http_cpprest_get_and_read_response/repeats:10_median                           3234 us          203 us           10
http_cpprest_get_and_read_response/repeats:10_stddev                           21.0 us         60.4 us           10
https_cpprest_get_and_read_response/repeats:10_mean                            3217 us          239 us           10
https_cpprest_get_and_read_response/repeats:10_median                          3210 us          227 us           10
https_cpprest_get_and_read_response/repeats:10_stddev                          17.0 us         51.6 us           10
http_libcurl_get_and_read_response/repeats:20_mean                             2365 us          121 us           20
http_libcurl_get_and_read_response/repeats:20_median                           2364 us          122 us           20
http_libcurl_get_and_read_response/repeats:20_stddev                           9.04 us         14.1 us           20
https_libcurl_get_and_read_response/repeats:20_mean                            2474 us          185 us           20
https_libcurl_get_and_read_response/repeats:20_median                          2470 us          187 us           20
https_libcurl_get_and_read_response/repeats:20_stddev                          12.4 us         18.7 us           20
http_libcurl_reinit_get_and_read_response/repeats:20_mean                    207871 us         1539 us           20
http_libcurl_reinit_get_and_read_response/repeats:20_median                  208045 us         1484 us           20
http_libcurl_reinit_get_and_read_response/repeats:20_stddev                     964 us          638 us           20
-------------------------------------------------------------------------------------------------------------------

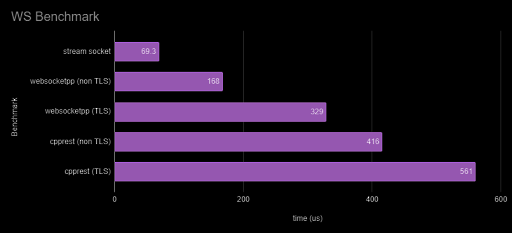

Benchmark Websocket                                                               Time             CPU   Iterations
-------------------------------------------------------------------------------------------------------------------
stream_socket_websocket_send_and_read_response/repeats:20_mean                 69.0 us         20.4 us           20
stream_socket_websocket_send_and_read_response/repeats:20_median               69.3 us         20.3 us           20
stream_socket_websocket_send_and_read_response/repeats:20_stddev               1.81 us         2.73 us           20
ws_cpprest_send_message_and_read_response/repeats:20_mean                       417 us          403 us           20
ws_cpprest_send_message_and_read_response/repeats:20_median                     416 us          401 us           20
ws_cpprest_send_message_and_read_response/repeats:20_stddev                    8.91 us         15.7 us           20
wss_cpprest_send_message_and_read_response/repeats:20_mean                      563 us          543 us           20
wss_cpprest_send_message_and_read_response/repeats:20_median                    561 us          544 us           20
wss_cpprest_send_message_and_read_response/repeats:20_stddev                   6.86 us         22.4 us           20
wspp_send_and_read_response/repeats:20_mean                                     171 us          169 us           20
wspp_send_and_read_response/repeats:20_median                                   168 us          167 us           20
wspp_send_and_read_response/repeats:20_stddev                                  7.89 us         8.20 us           20
wspp_secure_send_and_read_response/repeats:20_mean                              330 us          328 us           20
wspp_secure_send_and_read_response/repeats:20_median                            329 us          330 us           20
wspp_secure_send_and_read_response/repeats:20_stddev                           6.08 us         7.82 us           20

And that’s it, at the end of the day we confidently switch to libcurl + websocketpp since it’s proven to produce smaller-sized result and faster process, as you can see in the provided test results!
